Lakes Coastline Collection

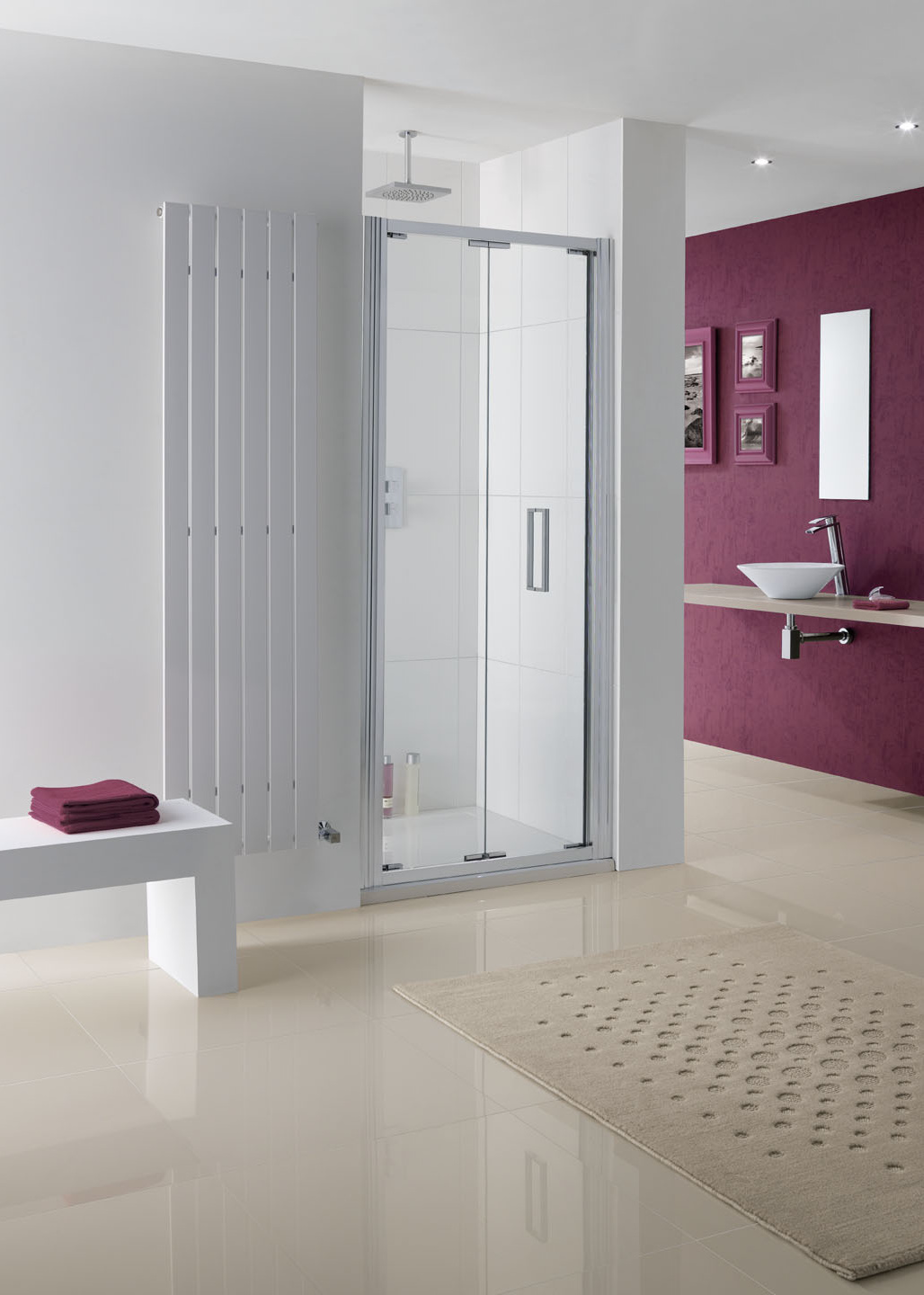

Bergen Bi-Fold Door
The Lakes Bergen Bi-Fold door is perfectly functional and beautifully designed, this bi-fold solution is notable for it’s sleek composition. The frameless doors enhance the illusion of space without sacrificing elegance or style.
Suitable Applications:
Corner Shower Enclosures
Alcove Shower Enclosures
Recess Shower Enclosures
Flat Wall Shower Enclosures
Features:
Lifetime guarantee
Fully reversible
8-10mm toughened glass
Easy installation
Polished silver frame
2m frame
Wet room or tray installation
AllClear as standard

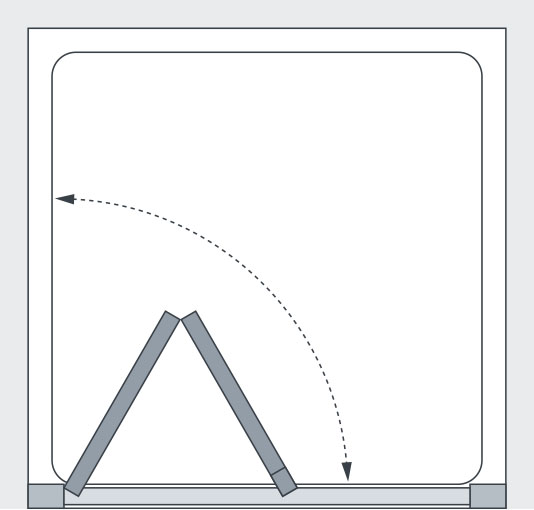

Technical Drawing
| Bi-Fold Door | (1 required) | ||||
| Product | Width (mm) | Height (mm) | Width Adjustment (mm) | Door Opening (mm) | Product Code |
| Lakes Bergen Bi Fold Door 700mm | 700 | 2000 | 660 – 720 | 390 | 8HB070 05 |
| Lakes Bergen Bi Fold Door 750mm | 750 | 2000 | 720 – 780 | 450 | 8HB075 05 |
| Lakes Bergen Bi Fold Door 800mm | 800 | 2000 | 760 – 820 | 490 | 8HB080 05 |
| Lakes Bergen Bi Fold Door 900mm | 900 | 2000 | 840 – 900 | 570 | 8HB090 05 |
| Lakes Bergen Bi Fold Door 1000mm | 1000 | 2000 | 940 – 1000 | 670 | 8HB100 05 |
| Side Panel | (Optional) | ||||
| Product | Width (mm) | Height (mm) | Width No Adjustment (mm) | Door Opening (mm) | Product Code |
| Lakes Bergen Side Panel 700mm | 700 | 2000 | 670 – 700 | 8HSP070 05 | |
| Lakes Bergen Side Panel 750mm | 750 | 2000 | 720 – 750 | 8HSP075 05 | |
| Lakes Bergen Side Panel 800mm | 800 | 2000 | 770 – 800 | 8HSP080 05 | |
| Lakes Bergen Side Panel 900mm | 900 | 2000 | 870 – 900 | 8HSP090 05 | |
| Lakes Bergen Side Panel 1000mm | 1000 | 2000 | 970 – 1000 | 8HSP100 05 | |
| Extension Profile | (Optional) | ||||
| Product | Width (mm) | Height (mm) | Width Adjustment (mm) | Door Opening (mm) | Product Code |
| Lakes Bergen Extension Profile 15mm | 15 | 8HLEP 05 |
