Lakes Classic Collection

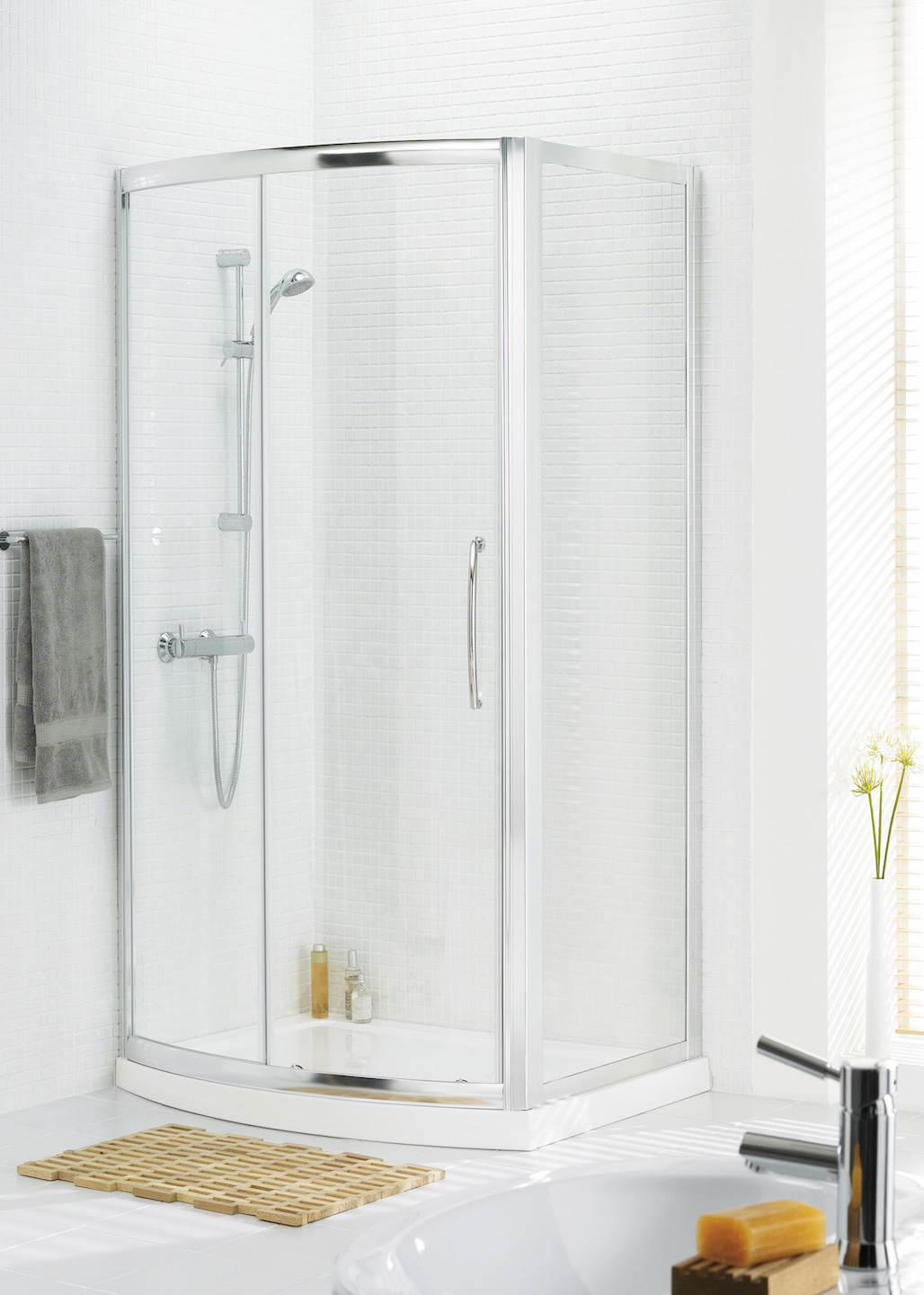

Bow Fronted Slider
The Lakes Bow Fronted Slider has a gentle curve to the front face of this luxurious enclosure that adds another dimensions to the Classic Collection. It also comes with a manufacturers lifetime guarantee and AllClear coating as standard.
Suitable Applications:
Corner Shower Enclosures
Recess Shower Enclosures
Alcove Shower Enclosures
Flat Wall Shower Enclosures
Features:
Lifetime guarantee
Fully reversible
Minimum 6mm toughened glass
Easy installation
Silver or white finish
AllClear as standard

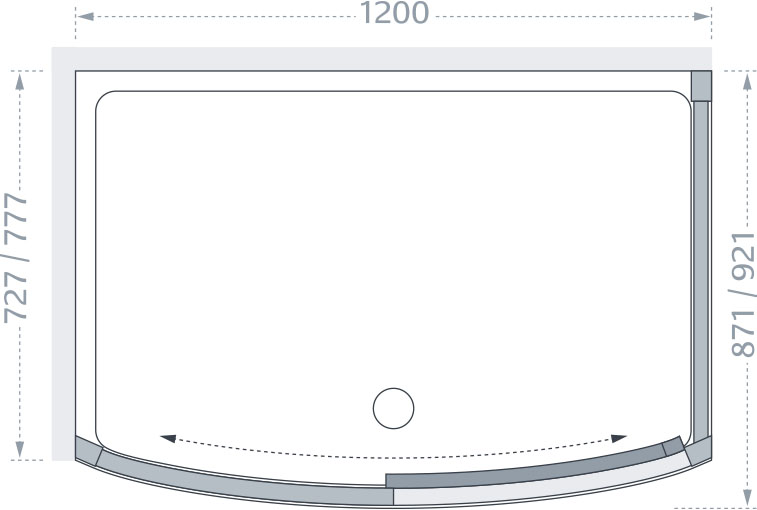

Technical Drawing
| Lakes Bow Fronted Slider Door | (1 required) | |||||
| Product | Width (mm) | Height (mm) | Width Adjustment (mm) | Door Opening Size (mm) | Product Code (Silver) | Product Code (White) |
| Lakes Bow Fronted Slider Door 1200mm | 1200 | 1850 | 1160 – 1190 | 470 | LKBF1200 05 | LKBF1200 30 |
| Lakes Bow Fronted Slider Side Panel | (Optional) | |||||
| Product | Width (mm) | Height (mm) | Width Adjustment (mm) | Door Opening Size (mm) | Product Code (Silver) | Product Code (White) |
| Lakes Bow Fronted Slider Side Panel 700mm | 700 | 1850 | 685 – 740 | LKBFSP070 05 | LKBFSP070 30 | |
| Lakes Bow Fronted Slider Side Panel 750mm | 750 | 1850 | 735 – 790 | LKBFSP075 05 | LKBFSP075 30 | |
| Lakes Bow Fronted Shower Tray | (1 required) | |||||
| Product | Width (mm) | Height (mm) | Depth (mm) | Type | Material | Product Code (White) |
| Lakes Bow Fronted Shower Tray 1200 x 700mm | 1200 | 700 | 40 | Low Profile | ABS Resin | LKTBF 700 |
| Lakes Bow Fronted Shower Tray 1200 x 750mm | 1200 | 750 | 40 | Low Profile | ABS Resin | LKTBP 750 |
| Lakes Bow Fronted Shower Tray Easy Plumb Kit | (Optional) | |||||
| Product | Width (mm) | Height (mm) | Depth (mm) | Type | Product Code (White) | |
| Lakes Bow Fronted Shower Tray Easy Plumb Kit | 1200 | 140 | 750 | Kit | LKT EP KIT 6 |
