Lakes Classic Collection

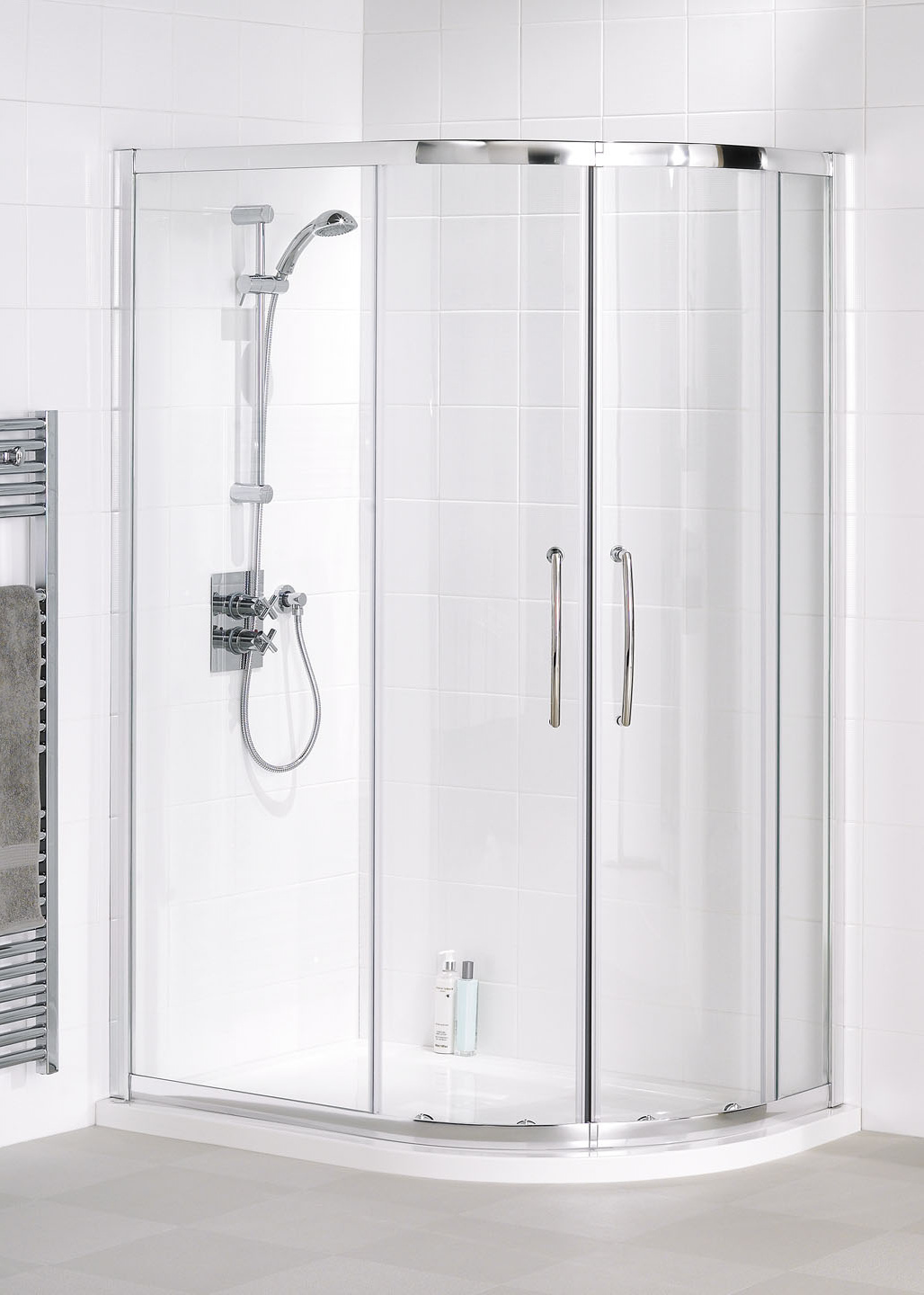

Easy Fit Offset Quadrant
The Lakes Easy Fit Offset Quadrant design is precision engineered to enable easier installation and makes use of available space in any bathroom. This enclosure also benefits from a manufacturers lifetime guarantee and AllClear coating as standard.
Suitable Applications:
Corner Shower Enclosures
Features:
Lifetime guarantee
AllClear coating as standard
Minimum 6mm toughened glass
Easy installation
Fully reversible
Polished Silver or White finish
Technical Drawing
| Lakes Easy Fit Offset Quadrant Enclosure | (1 required) | |||||||
| Product | Width (mm) | Height (mm) | Depth (mm) | Width Adjustment (mm) | Depth Adjustment (mm) | Door Opening Size (mm) | Product Code (Silver) | Product Code (White) |
| Lakes Easy Fit Offset Quadrant 900 x 800mm | 900 | 1850 | 800 | 865 – 890 | 765 – 795 | 450 | LKR900800 05 | LKR900800 30 |
| Lakes Easy Fit Offset Quadrant 1000 x 800mm | 1000 | 1850 | 800 | 965 – 990 | 765 – 795 | 450 | LKR1000800 05 | LKR1000800 30 |
| Lakes Easy Fit Offset Quadrant 1200 x 800mm | 1200 | 1850 | 800 | 1165 – 1190 | 765 – 795 | 450 | LKR1200800 05 | LKR1200800 30 |
| Lakes Easy Fit Offset Quadrant 1200 x 900mm | 1200 | 1850 | 900 | 1165 – 1190 | 865 – 890 | 530 | LKR1200900 05 | LKR1200900 30 |
| Lakes Easy Fit Quadrant Extension Profile | ||||||||
| Product | Width (mm) | Height (mm) | Depth (mm) | Width Adjustment (mm) | Depth Adjustment (mm) | Door Opening Size (mm) | Product Code (Silver) | Product Code (White) |
| Lakes Easy Fit Quadrant Extension Profile 30mm | 30 | 1850 | LKR-C001 | LKR-W001 |
