Lakes Coastline Collection
Marseilles Shower Screen
The Lakes Marseilles Shower Screen is beautifully crafted to an exceptional standard. Combining 8mm toughened glass with slim profile framework to create a spacious and relaxing shower enclosure.
Suitable Applications:
Corner Shower Enclosures
Walk-In Shower Enclosures
Flat Wall Shower Enclosures
Features:
Lifetime guarantee
Fully reversible
8-10mm toughened glass
Easy installation
Polished silver frame
2m frame
Wet room or tray installation
AllClear as standard

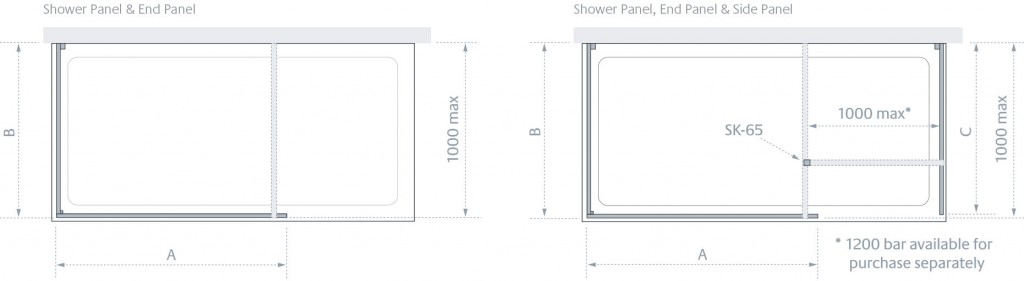

Technical Drawing
| Shower Panel (A) | (1 required) | |||
| Product | Width (mm) | Height (mm) | Width Adjustment No Adjustment (mm) | Product Code |
| Lakes Marseilles Shower Screen 750mm | 750 | 2000 | 755 | LK815-075 05 |
| Lakes Marseilles Shower Screen 850mm | 850 | 2000 | 855 | LK815-085 05 |
| Lakes Marseilles Shower Screen 950mm | 950 | 2000 | 955 | LK815-095 05 |
| Lakes Marseilles Shower Screen 1100mm | 1100 | 2000 | 1063 | LK815-110 05 |
| Lakes Marseilles Shower Screen 1200mm | 1200 | 2000 | 1163 | LK815-120 05 |
| Lakes Marseilles Shower Screen 1400mm | 1400 | 2000 | 1363 | LK815-140 05 |
| End Panel (B) | (1 required) | |||
| Product | Width (mm) | Height (mm) | Width Adjustment (mm) | Product Code |
| Lakes Marseilles End Panel 700mm | 700 | 2000 | 970 – 705 | LK818-070 05 |
| Lakes Marseilles End Panel 750mm | 750 | 2000 | 720 – 755 | LK818-075 05 |
| Lakes Marseilles End Panel 800mm | 800 | 2000 | 770 – 805 | LK818-080 05 |
| Lakes Marseilles End Panel 900mm | 900 | 2000 | 870 – 905 | LK818-090 05 |
| Lakes Marseilles End Panel 1000mm | 1000 | 2000 | 970 – 1005 | LK818-100 05 |
| Side Panel (C) | (Optional) | |||
| Product | Width (mm) | Height (mm) | Width Adjustment (mm) | Product Code |
| Lakes Marseilles Side Panel 700mm | 700 | 2000 | 655 – 690 | LK810-070 05 |
| Lakes Marseilles Side Panel 750mm | 750 | 2000 | 705 – 740 | LK810-075 05 |
| Lakes Marseilles Side Panel 800mm | 800 | 2000 | 755 – 790 | LK810-080 05 |
| Lakes Marseilles Side Panel 900mm | 900 | 2000 | 855 – 890 | LK810-090 05 |
| Lakes Marseilles Side Panel 1000mm | 1000 | 2000 | 955 – 990 | LK810-100 05 |
| 90° Bar Jointing Kit For Side Panel | (Optional) | |||
| Product | Width (mm) | Height (mm) | Width Adjustment (mm) | Product Code |
| Lakes Marseilles 90° Bar Jointing Kit | SK-65 |
