Lakes Coastline Collection

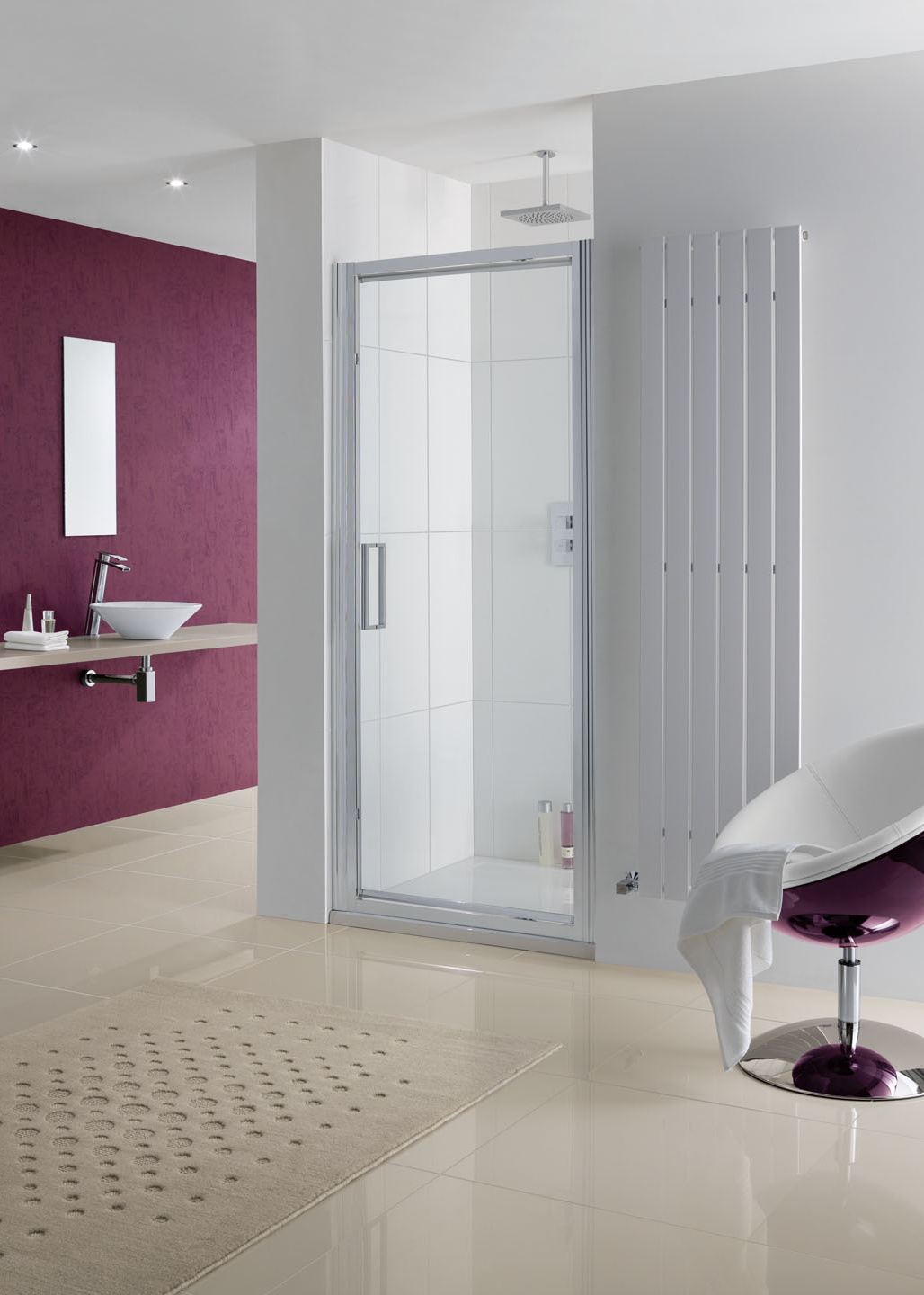

Narva Pivot Door
The versatile Narva Pivot Door can be installed independantly in an alcove or, by utilising the optional side panels, can be installed as a corner or flat wall enclosure.
The Narva is covered by the manufacturers lifetime guarantee with AllClear coating as standard. Not only is the Narva robust, practical and easy to clean, the sleek design is also an attractive focal point in any setting.
Suitable Applications:
Corner Shower Enclosures
Alcove Shower Enclosures
Recess Shower Enclosures
Flat Wall Shower Enclosures
Features:
Lifetime guarantee
Fully reversible
8mm toughened glass
Easy installation
Polished silver frame
2m frame
Wet room or tray installation
AllClear as standard

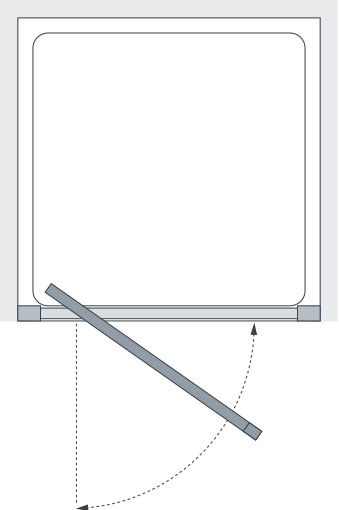

Technical Drawing
| Lakes Narva Pivot Door | (1 required) | ||||
| Product | Width (mm) | Height (mm) | Width Adjustment (mm) | Door Opening Size (mm) | Product Code |
| Lakes Narva Pivot Door 700mm | 700 | 2000 | 660 – 720 | 423 | 8HP070 05 |
| Lakes Narva Pivot Door 750mm | 750 | 2000 | 720 – 780 | 483 | 8HP075 05 |
| Lakes Narva Pivot Door 800mm | 800 | 2000 | 760 – 820 | 513 | 8HP080 05 |
| Lakes Narva Pivot Door 900mm | 900 | 2000 | 840 – 900 | 553 | 8HP090 05 |
| Lakes Narva Pivot Door 1000mm | 1000 | 2000 | 940 – 100 | 603 | 8HP100 05 |
| Lakes Narva Side Panel | (Optional) | ||||
| Product | Width (mm) | Height (mm) | Width Adjustment (mm) | Door Opening Size (mm) | Product Code |
| Lakes Narva Side Panel 700mm | 700 | 2000 | 670 – 700 | 8HSP070 05 | |
| Lakes Narva Side Panel 750mm | 750 | 2000 | 720 – 750 | 8HSP075 05 | |
| Lakes Narva Side Panel 800mm | 800 | 2000 | 770 – 800 | 8HSP080 05 | |
| Lakes Narva Side Panel 900mm | 900 | 2000 | 870 – 900 | 8HSP090 05 | |
| Lakes Narva Side Panel 1000mm | 1000 | 2000 | 970 – 1000 | 8HSP100 05 | |
| Lakes Narva Extension Profile | (Optional) | ||||
| Product | Width (mm) | Height (mm) | Width Adjustment (mm) | Door Opening Size (mm) | Product Code |
| Lakes Narva Extension Profile 15mm | 15 | 2000 | 8HLEP 05 |
