Lakes Coastline Collection

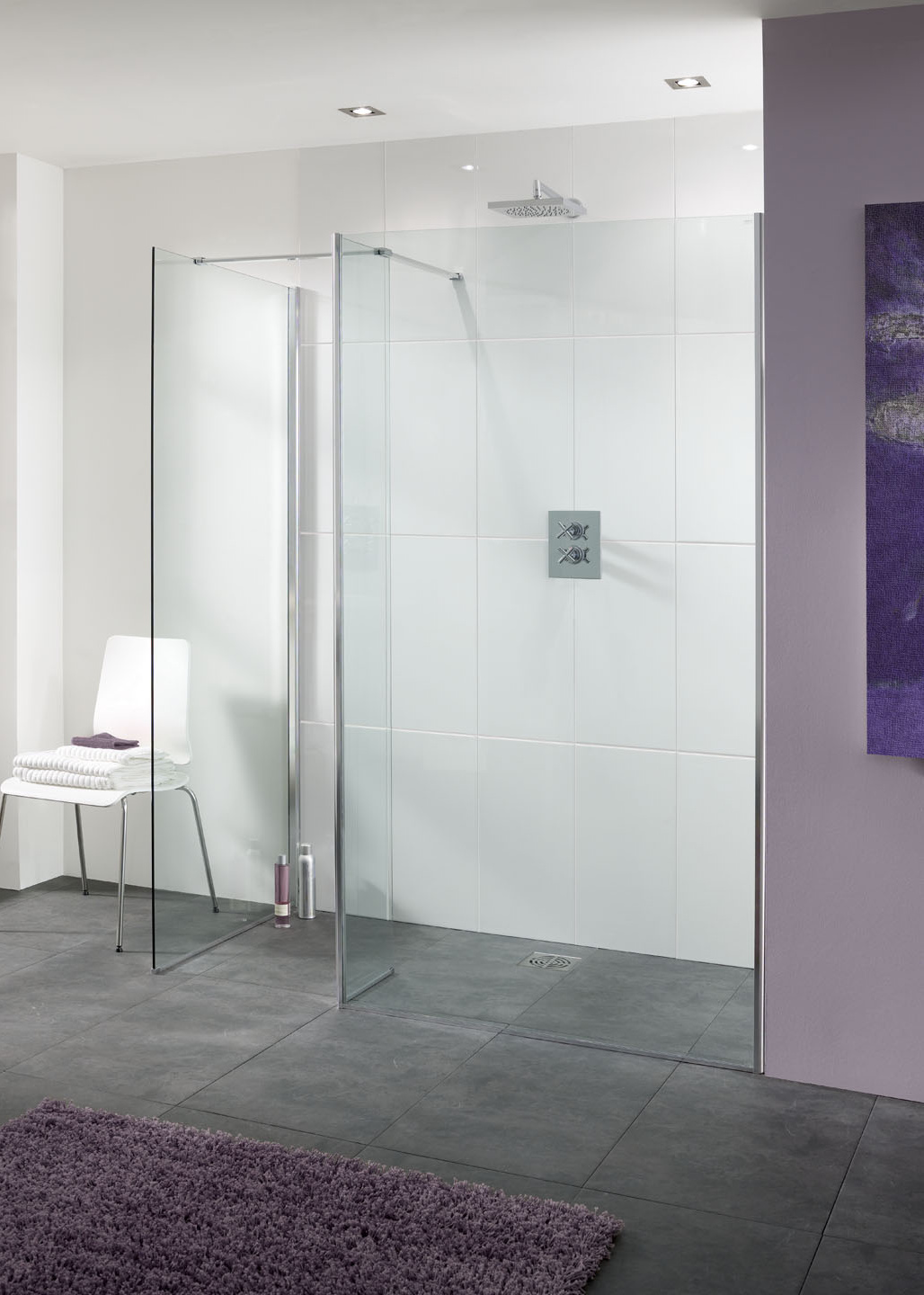

Palma Shower Screen
A beautifully designed and expertly crafted walk-in shower enclosure. The Lakes Palma shower screen incorporates minimal framework, promoting sleek lines and vast amounts of space to provide a luxurious and refreshing showering environment. The 8mm toughened glass, finished with a durable AllClear coating ensures easy maintenance and provides peace of mind that the Palma will look like new years after installation.
Suitable Applications:
Corner Shower Enclosures
Walk-In Shower Enclosures
Features:
Lifetime guarantee
Fully reversible
8-10mm toughened glass
Easy installation
Polished silver frame
2m frame
Wet room or tray installation
AllClear as standard

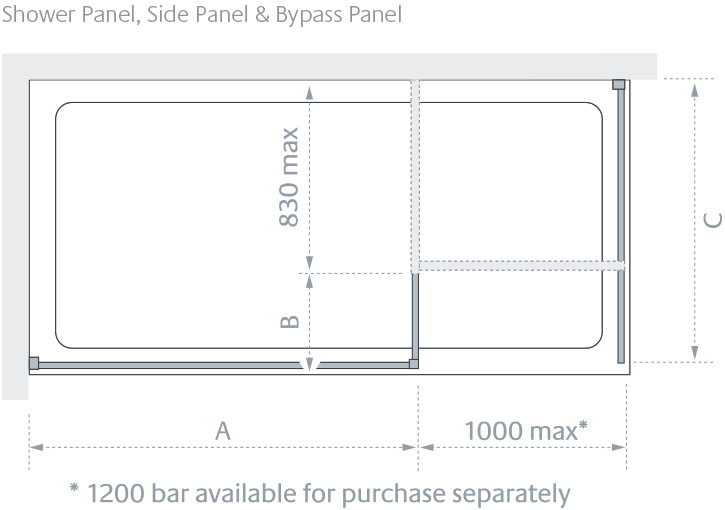

Technical Drawing
| Shower Panel (A) | (1 required) | |||
| Product | Width (mm) | Height (mm) | Width Adjustment (mm) | Product Code |
| Lakes Palma Shower Screen 800mm | 800 | 2000 | 770 – 805 | LK812-080 05 |
| Lakes Palma Shower Screen 900mm | 900 | 2000 | 870 – 905 | LK812-090 05 |
| Lakes Palma Shower Screen 1000mm | 1000 | 2000 | 970 – 1005 | LK812-100 05 |
| Lakes Palma Shower Screen 1100mm | 1100 | 2000 | 1080 – 1115 | LK812-110 05 |
| Lakes Palma Shower Screen 1200mm | 1200 | 2000 | 1180 – 1215 | LK812-120 05 |
| Lakes Palma Shower Screen 1400mm | 1400 | 2000 | 1380 – 1415 | LK812-140 05 |
| Bypass Panel (B) | (1 required) | |||
| Product | Width (mm) | Height (mm) | Width No Adjustment (mm) | Product Code |
| Lakes Palma Bypass Panel 200mm | 200 | 2000 | 200 | LK812-020 05 |
| Lakes Palma Bypass Panel 320mm | 320 | 2000 | 320 | LK812-032 05 |
| Lakes Palma Bypass Panel 400mm | 400 | 2000 | 397 | LK812-40 05 |
| Side Panel (C) | (1 required) | |||
| Product | Width (mm) | Height (mm) | Width Adjustment (mm) | Product Code |
| Lakes Palma Side Panel 700mm | 700 | 2000 | 655 – 690 | LK810-070 05 |
| Lakes Palma Side Panel 750mm | 750 | 2000 | 705 – 740 | LK810-075 05 |
| Lakes Palma Side Panel 800mm | 800 | 2000 | 755 – 790 | LK810-080 05 |
| Lakes Palma Side Panel 900mm | 900 | 2000 | 855 – 890 | LK810-090 05 |
| Lakes Palma Side Panel 1000mm | 1000 | 2000 | 955 – 990 | LK810-100 05 |
