Lakes Coastline Collection
Rhodes Shower Screen

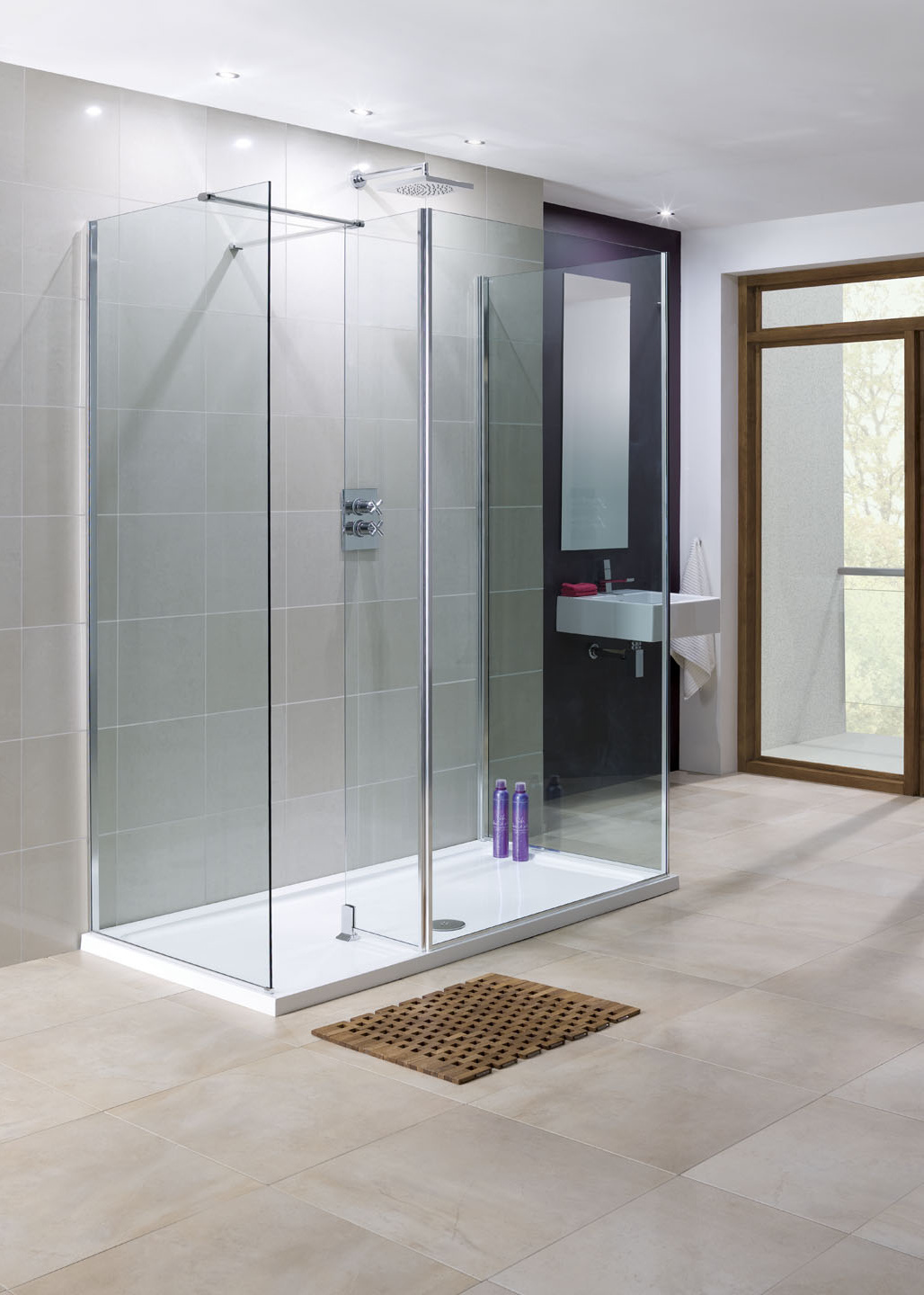

The Lakes Rhodes Shower enclosure creates maximum impact with a minimalist design. By incorporating sleek framework with large areas of toughened glass, the Rhodes acts as a striking focal point for any bathroom.
Suitable for use with large shower trays or wet room installation.
Suitable Applications:
Walk-In Shower Enclosures
Flat Wall Shower Enclosures
Features:
Lifetime guarantee
Fully reversible
8-10mm toughened glass
Easy installation
Polished silver frame
2m frame
Wet room or tray installation
AllClear as standard

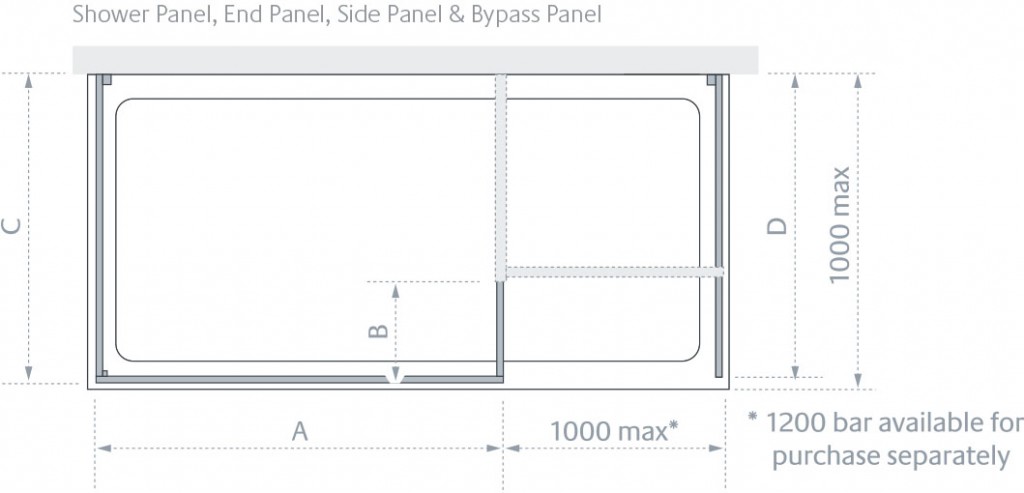

Technical Drawing
| Shower Panel (A) | (1 required) | |||
| Product | Width (mm) | Height (mm) | Width No Adjustment (mm) | Product Code |
| Lakes Rhodes Shower Screen 700mm | 200 | 2000 | 720 | LK814-070 05 |
| Lakes Rhodes Shower Screen 750mm | 320 | 2000 | 770 | LK814-075 05 |
| Lakes Rhodes Shower Screen 850mm | 400 | 2000 | 870 | LK814-085 05 |
| Lakes Rhodes Shower Screen 950mm | 500 | 2000 | 970 | LK814-095 05 |
| Lakes Rhodes Shower Screen 1050mm | 600 | 2000 | 1078 | LK814-105 05 |
| Lakes Rhodes Shower Screen 1150mm | 700 | 2000 | 1178 | LK814-115 05 |
| Lakes Rhodes Shower Screen 1350mm | 750 | 2000 | 1378 | LK814-135 05 |
| Bypass Panel (B) | (1 required) | |||
| Product | Width (mm) | Height (mm) | Width No Adjustment (mm) | Product Code |
| Lakes Rhodes Bypass Panel 200mm | 200 | 2000 | 200 | LK812-20 05 |
| Lakes Rhodes Bypass Panel 320mm | 320 | 2000 | 320 | LK812-32 05 |
| Lakes Rhodes Bypass Panel 400mm | 400 | 2000 | 397 | LK812-40 05 |
| End Panel (C) | (1 required) | |||
| Product | Width (mm) | Height (mm) | Width Adjustment (mm) | Product Code |
| Lakes Rhodes End Panel 700mm | 700 | 2000 | 670 – 705 | LK818-070 05 |
| Lakes Rhodes End Panel 750mm | 750 | 2000 | 720 – 755 | LK818-075 05 |
| Lakes Rhodes End Panel 800mm | 800 | 2000 | 770 – 805 | LK818-080 05 |
| Lakes Rhodes End Panel 900mm | 900 | 2000 | 870 – 905 | LK818-090 05 |
| Lakes Rhodes End Panel 1000mm | 1000 | 2000 | 970 – 1005 | LK818-100 05 |
| Side Panel (D) | (1 required) | |||
| Product | Width (mm) | Height (mm) | Width Adjustment (mm) | Product Code |
| Lakes Rhodes Side Panel 700mm | 700 | 2000 | 655 – 690 | LK810-070 05 |
| Lakes Rhodes Side Panel 750mm | 750 | 2000 | 705 – 740 | LK810-075 05 |
| Lakes Rhodes Side Panel 800mm | 800 | 2000 | 755 – 790 | LK810-080 05 |
| Lakes Rhodes Side Panel 900mm | 900 | 2000 | 855 – 890 | LK810-090 05 |
| Lakes Rhodes Side Panel 1000mm | 1000 | 2000 | 955 – 990 | LK810-100 05 |
| Extended Bracing Bar For Shower Panel | (Optional) | |||
| Product | Width (mm) | Height (mm) | Width Adjustment (mm) | Product Code |
| Lakes Rhodes 1200mm Extended Bracing Bar | 1200 | 01E352-120 |
