Lakes Coastline Collection
Riviera Shower Screen
Shower Panel & Bypass Panels
The Lakes Riviera boasts sleek lines and spacious showering. The in & out enclosure creates a relaxing environment that utilises space, provides a practical showering area and acts as an attractive focal point. The Riviera is covered by a manufacturers lifetime guarantee and includes an AllClear coating as standard.
Suitable Applications:
Walk-In Shower Enclosures
Flat Wall Shower Enclosures
Features:
Lifetime guarantee
Fully reversible
8-10mm toughened glass
Easy installation
Polished silver frame
2m frame
Wet room or tray installation
AllClear as standard

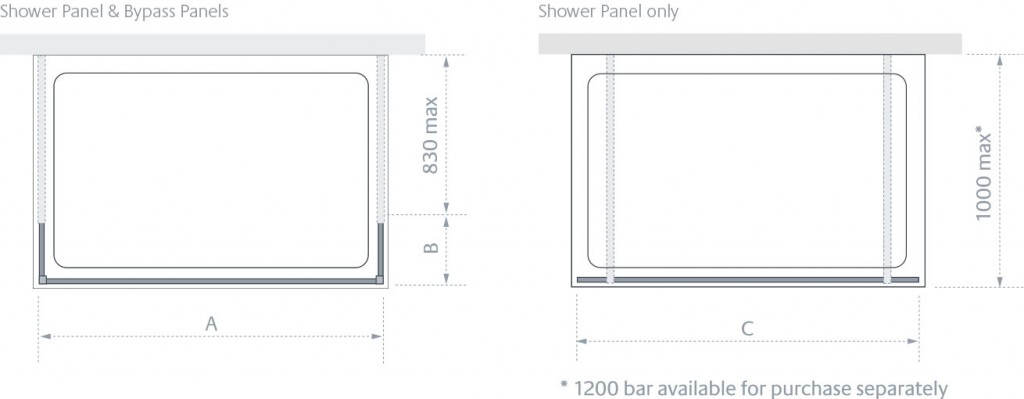

Technical Drawing
| Shower Panel (A) | (1 required) | |||
| Product | Width (mm) | Height (mm) | Width No Adjustment (mm) | Product Code |
| Lakes Riviera Shower Screen 1100mm | 1100 | 2000 | 1078 | LK811-110 05 |
| Lakes Riviera Shower Screen 1200mm | 1200 | 2000 | 1178 | LK811-120 05 |
| Lakes Riviera Shower Screen 1400mm | 1400 | 2000 | 1378 | LK811-140 05 |
| Bypass Panel (B) | (2 required) | |||
| Product | Width (mm) | Height (mm) | Width No Adjustment (mm) | Product Code |
| Lakes Riviera Bypass Panel 200mm | 200 | 2000 | 200 | LK812-20 05 |
| Lakes Riviera Bypass Panel 320mm | 320 | 2000 | 320 | LK812-32 05 |
| Lakes Riviera Bypass Panel 400mm | 400 | 2000 | 397 | LK812-40 05 |
