Lakes Classic Collection

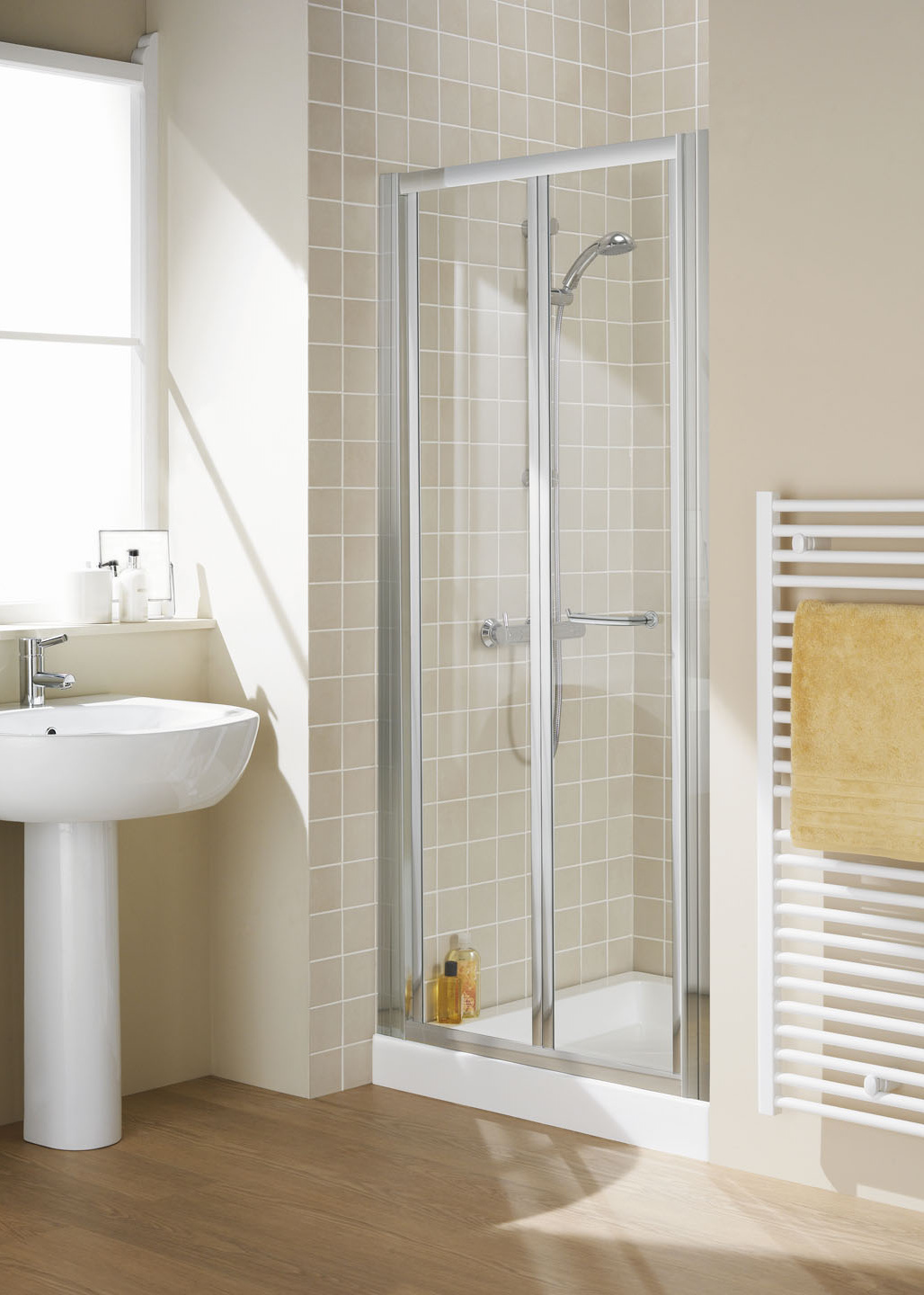

Semi-Frameless Bi-Fold Door
The Lakes Semi-Frameless Bi-Fold Door is available in 5 widths and 2 finishes. Manufactured to a high standard, the in-ward opening bi-fold door offers simplicity and practicality to provide a functional space saving showering solution.
Can be combined with optional side panels for corner (1 side panel) or flat wall use (2 side panels).
Covered by a manufacturers lifetime guarantee and AllClear coating as standard.
Suitable Applications:
Corner Shower Enclosures
Recess Shower Enclosures
Alcove Shower Enclosures
Flat Wall Shower Enclosures
Features:
Lifetime guarantee
AllClear coating as standard
Minimum 6mm toughened glass
Easy installation
Fully reversible
Polished silver or White finish

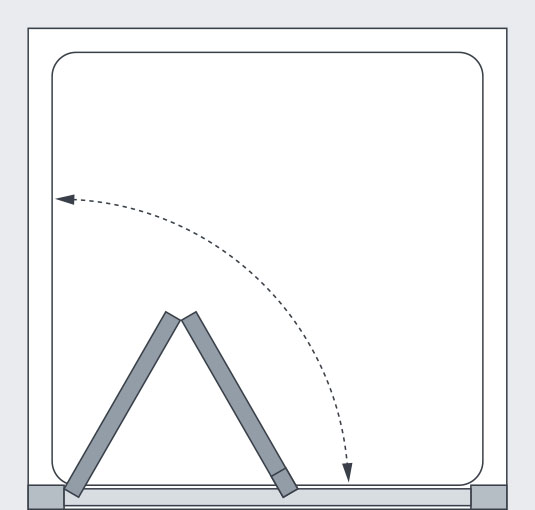

Technical Drawing
| Lakes Easy Semi-Frameless Bi-Fold Door | (1 required) | |||||
| Product | Width (mm) | Height (mm) | Width Adjustment (mm) | Door Opening Size (mm) | Product Code (Silver) | Product Code (White) |
| Lakes Semi Frameless Bi Fold Door 700mm | 700 | 1850 | 660 – 720 | 425 | LKVB070 05 | LKVB070 30 |
| Lakes Semi Frameless Bi Fold Door 750mm | 750 | 1850 | 720 – 780 | 485 | LKVB075 05 | LKVB075 30 |
| Lakes Semi Frameless Bi Fold Door 800mm | 800 | 1850 | 760 – 820 | 525 | LKVB080 05 | LKVB080 30 |
| Lakes Semi Frameless Bi Fold Door 900mm | 900 | 1850 | 840 – 900 | 605 | LKVB090 05 | LKVB090 30 |
| Lakes Semi Frameless Bi Fold Door 1000mm | 1000 | 1850 | 940 – 100 | 705 | LKVB1000 05 | LKVB1000 30 |
| Lakes Semi-Frameless In-Line Panel | (Optional) | |||||
| Product | Width (mm) | Height (mm) | Width Adjustment (mm) | Door Opening Size (mm) | Product Code (Silver) | Product Code (White) |
| Lakes Semi Frameless In Line Panel 350mm | 350 | 1850 | 340 – 385 | LILPP350 05 | LILPP350 30 | |
| Lakes Semi-Frameless Extension Profile | (Optional) | |||||
| Product | Width (mm) | Height (mm) | Width Adjustment (mm) | Door Opening Size (mm) | Product Code (Silver) | Product Code (White) |
| Lakes Semi Frameless Extension Profile 30mm | 30 | 1850 | LEP 05 | LEP 30 | ||
| Lakes Semi-Frameless Side Panel | (Optional) | |||||
| Product | Width (mm) | Height (mm) | Width Adjustment (mm) | Door Opening Size (mm) | Product Code (Silver) | Product Code (White) |
| Lakes Semi Frameless Side Panel 700mm | 700 | 1850 | 660 – 720 | LK1SP070 05 | LK1SP070 30 | |
| Lakes Semi Frameless Side Panel 750mm | 750 | 1850 | 720 – 780 | LK1SP075 05 | LK1SP075 30 | |
| Lakes Semi Frameless Side Panel 800mm | 800 | 1850 | 760 – 820 | LK1SP080 05 | LK1SP080 30 | |
| Lakes Semi Frameless Side Panel 900mm | 900 | 1850 | 840 – 900 | LK1SP090 05 | LK1SP090 30 | |
| Lakes Semi Frameless Side Panel 1000mm | 1000 | 1850 | 940 – 1000 | LK1SP100 05 | LK1SP100 30 |
