Lakes Classic Collection
Single Door Offset Quadrant

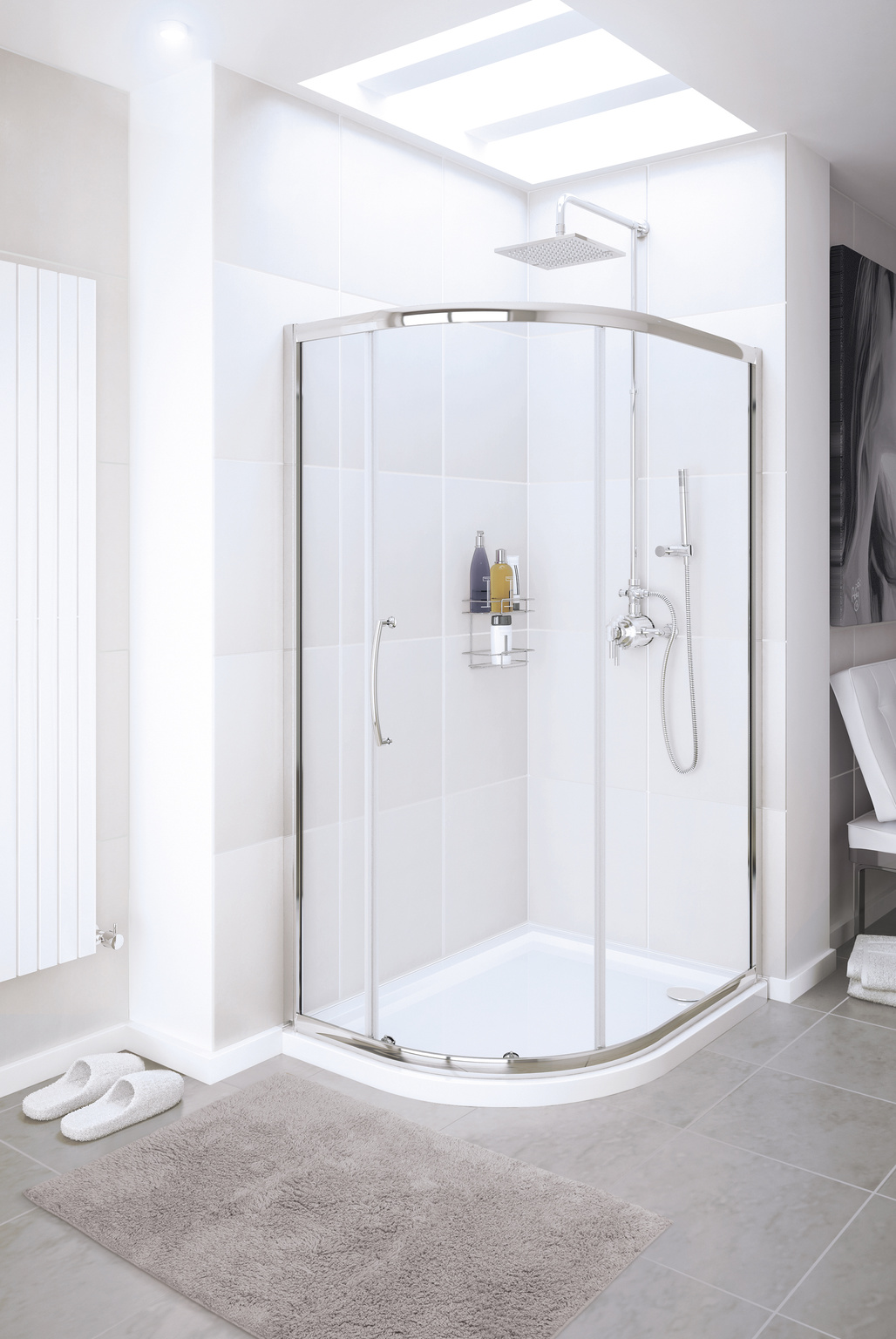

The Lakes Single Door Offset Quadrant is available in 5 sizes to suit any bathroom. Manufactured to a high standard, this stunning semiframeless enclosure offers simplicity and practicality to provide a functional design-led showering solution. It’s pillarless design makes it one of the most attractive offset quadrant enclosures available at an unbeatable price.
The Lakes Single Door Offset Quadrant benefits from a manufacturers lifetime guarantee and AllClear glass coating as standard.
Suitable Applications:
Corner Shower Enclosures
Features:
Lifetime guarantee
AllClear as standard
Minimum 6mm toughened glass
Easy installation
Fully reversible
Polished Silver finish

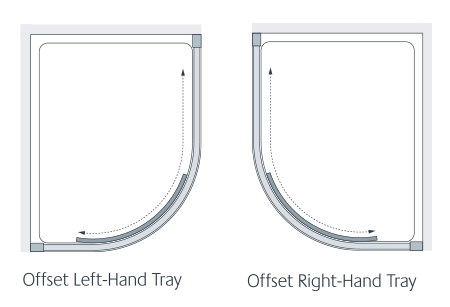

Technical Drawing
| Lakes Single Door Offset Quadrant | (1 required) | ||||||
| Product | Width (mm) | Height (mm) | Depth (mm) | Width Adjustment (mm) | Depth Adjustment (mm) | Door Opening Size (mm) | Product Code (Silver) |
| Lakes Single Door Offset Quadrant 900 x 760mm | 900 | 1900 | 760 | 865 – 895 | 725 – 755 | 500 | SDV2R0976 |
| Lakes Single Door Offset Quadrant 900 x 8000mm | 900 | 1900 | 800 | 865 – 895 | 765 – 795 | 500 | SDV2R098 |
| Lakes Single Door Offset Quadrant 1000 x 800mm | 1000 | 1900 | 800 | 965 – 995 | 765 – 795 | 500 | SDV2R108 |
| Lakes Single Door Offset Quadrant 1200 x 800mm | 1200 | 1900 | 800 | 1165 – 1195 | 765 – 795 | 500 | SDV2R128 |
| Lakes Single Door Offset Quadrant 1200 x 900mm | 1200 | 1900 | 900 | 1165 – 1195 | 865 – 895 | 500 | SDV2R129 |
| Lakes Single Door Offset Quadrant Extension Profile | (Optional) | ||||||
| Product | Width (mm) | Height (mm) | Depth (mm) | Width Adjustment (mm) | Depth Adjustment (mm) | Door Opening Size (mm) | Product Code (Silver) |
| Lakes Single Door Offset Quadrant Extension Profile 30mm | 30 | LEP 05 |
