Product Description
For help and advice, questions relating to this or other Vado products and best prices, please call our showroom on 0121 270 8808

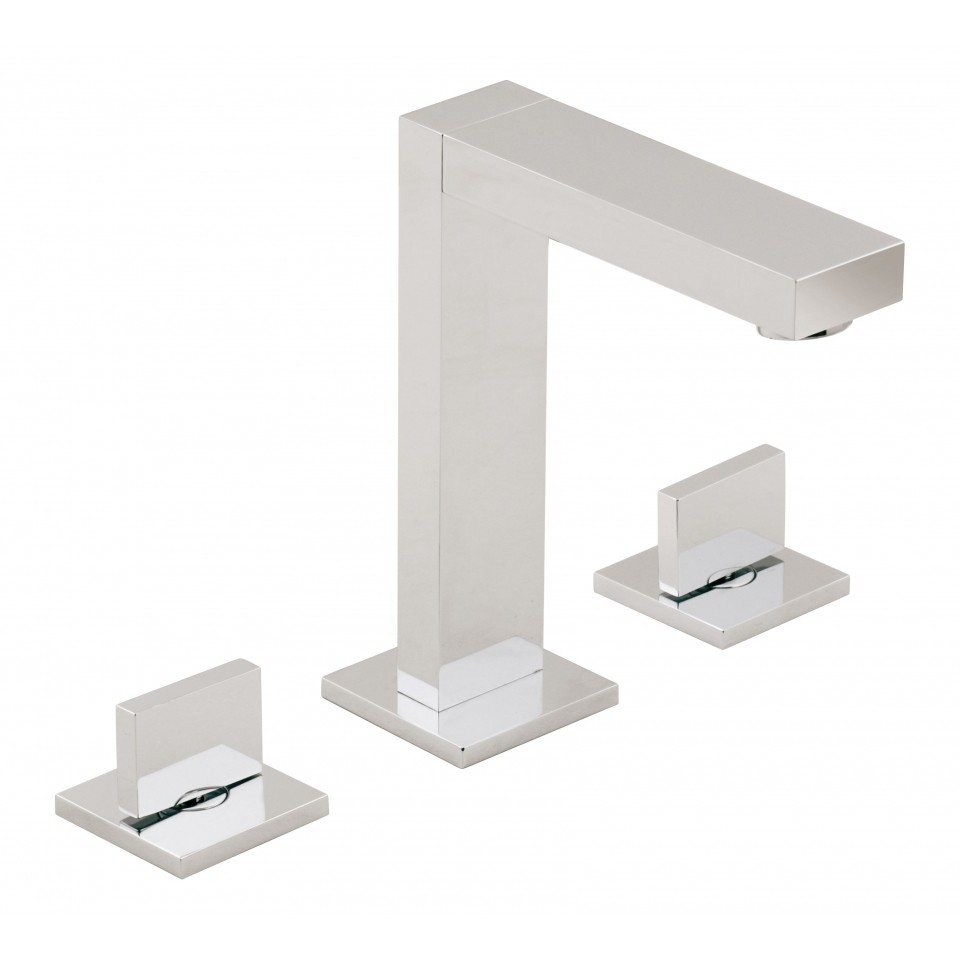

Notion deck mounted 3 hole basin mixer – item usually stock 2/3 day delivery
- 3 hole basin mixer
- deck mounted
- 12 year manufacturer guarantee
- swivel or fixed spout
- with universal basin waste
- minimum operating pressure 1.0 bar MP
- 2 x 1/2” female x 1/2” femalex 490mm flexipipe connections

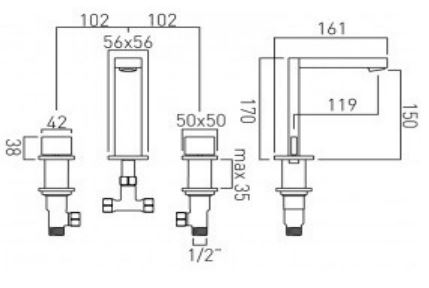

- product dimensions 161mm(l) x 254mm(w) x 170mm(h)
- max 35mm thickness for mounting
- height from deck to under spout 150mm
- WRAS approved
Description
The Notion range of Vado taps feature crisp, straight edges and perfectly proportioned angles to create beautiful square designs. These features are apparent throughout the range of Notion taps, showers and bath fillers.
The Vado Notion deck mounted 3 hole basin mixer is suitable for use on all 3 tap hole bathroom and cloakroom washbasins. Hot & Cold water flow is controlled by independent twist handles. The spout can be set to a fixed position, or operate a swivel motion.
The Notion deck mounted 3 hole basin mixer has a 12 year manufacturer guarantee as standard. Complimenting accessories, showers and taps are available to complete the Notion range.
Manufactured from solid brass with chrome plating and benefiting from a 12 year manufacturers guarantee.
For help and advice, questions relating to this or other Vado products and best prices, please call our showroom on 0121 270 8808
Notion deck mounted 3 hole basin mixer – item usually stock 2/3 day delivery
- 3 hole basin mixer
- deck mounted
- 12 year manufacturer guarantee
- swivel or fixed spout
- with universal basin waste
- minimum operating pressure 1.0 bar MP
- 2 x 1/2” female x 1/2” femalex 490mm flexipipe connections
- product dimensions 161mm(l) x 254mm(w) x 170mm(h)
- max 35mm thickness for mounting
- height from deck to under spout 150mm
- WRAS approved
Additional information
| Dimensions | 16.1 × 25.4 × 17 cm |
|---|---|
| Brand | |
| Collection | Notion |
| Product Code | NOT-101-C/P |
| Product Guarantee | 12 years manufacturers guarantee |
| Material | |
| Finish | |
| Minimum Operating Pressure | 1.0 bar |
| Flow Rate at 3 Bar Pressure | 16 l/min |
| Waste Included | Yes |
| Instructions Included | Yes |
| WRAS Approved | Yes |
