Product Description
For help and advice, questions relating to this or other Vado products and best prices, please call our showroom on 0121 270 8808

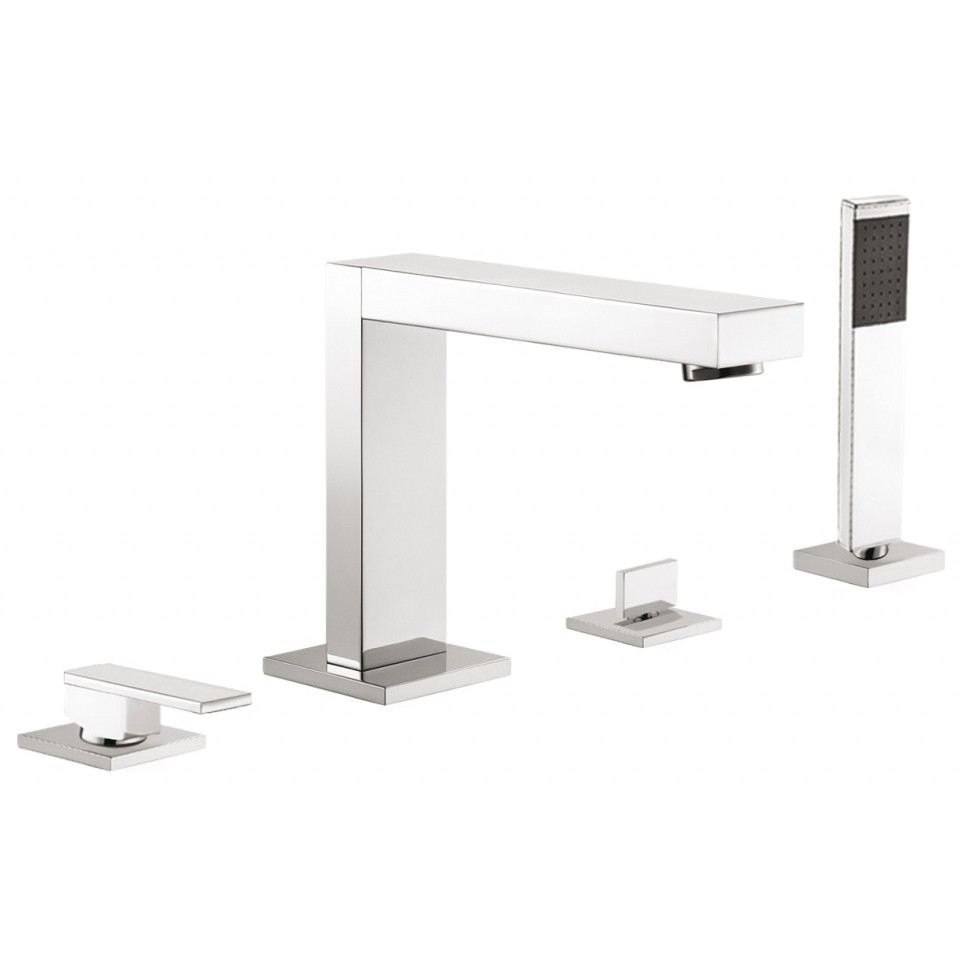

Notion deck mounted single lever 4 hole bath shower mixer – item usually stock 2/3 day delivery
- 4 hole bath shower mixer
- deck mounted
- 12 year manufacturer guarantee
- with fixed spout
- single lever
- with shower kit
- with ceramic cartridges
- with aerator
- minimum operating pressure 3.0 bar HP
- flow rate at 3.0 bar pressure bath spout 16 l/min shower handset 20 l/min

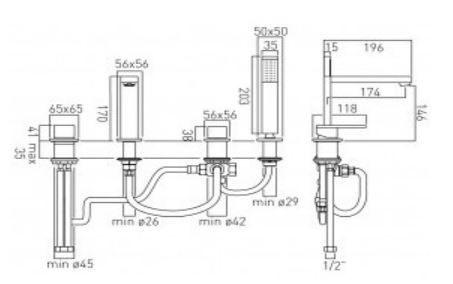

- product dimensions 196mm(l) x mm(w) x 170mm(h)
- height from deck to under spout 146mm
- WRAS approved
Description
The Notion range of Vado taps feature crisp, straight edges and perfectly proportioned angles to create beautiful square designs. These features are apparent throughout the range of Notion taps, showers and bath fillers.
The Vado Notion deck mounted single lever 4 hole bath shower mixer is suitable for use on un-drilled acrylic baths. Also suitable for plinth mounting to the side of the bath. Hot & Cold water flow is controlled by a single lever, with a separate diverter to switch flow between the bath spout and handshower.
The Notion deck mounted single lever 4 hole bath shower mixer has a 12 year manufacturer guarantee as standard. Complimenting accessories, showers and taps are available to complete the Notion range.
For help and advice, questions relating to this or other Vado products and best prices, please call our showroom on 0121 270 8808
Notion deck mounted single lever 4 hole bath shower mixer – item usually stock 2/3 day delivery
- 4 hole bath shower mixer
- deck mounted
- 12 year manufacturer guarantee
- with fixed spout
- single lever
- with shower kit
- with ceramic cartridges
- with aerator
- minimum operating pressure 3.0 bar HP
- flow rate at 3.0 bar pressure bath spout 16 l/min shower handset 20 l/min
- product dimensions 196mm(l) x mm(w) x 170mm(h)
- height from deck to under spout 146mm
- WRAS approved
Additional information
| Dimensions | 19.6 × 17 cm |
|---|---|
| Brand | |
| Collection | Notion |
| Product Code | NOT-132-C/P |
| Product Guarantee | 12 years manufacturers guarantee |
| Material | |
| Finish | |
| Minimum Operating Pressure | 3.0 bar HP |
| Flow Rate at 3 Bar Pressure | Bath 16 l/min Shower 20 l/min |
| Waste Included | Without Waste |
| Instructions Included | Yes |
| Aerator Included | Yes |
| Flexi Pipes Included | Yes |
| WRAS Approved | Yes |
